The material from the feeder rotates rapidly with the movement of the rotor to obtainhigh kinetic energy, HSI Crusher use impact energy to crush materials. Driven by the motor, the rotor revolved at a high speed. Revolving blow bars in the rotor blow the materials. then the materials will be thrown to impact plates for secondary crushing

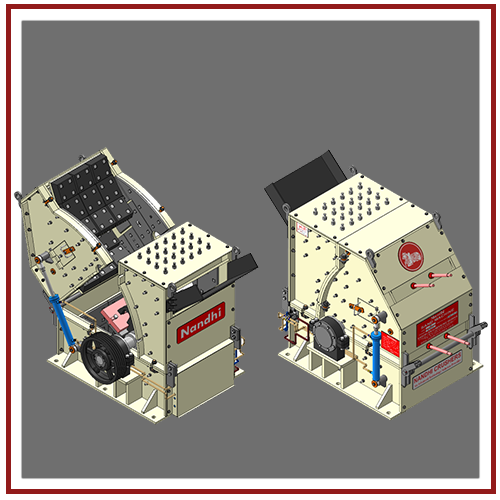

Nandhi Horizontal Shaft Impact Crusher is an Impacted designed for the specific application of sand production.It is unique as its productivity is high consuming less power to crush aggregates of size upto 40mm into sands fines.So it is more profitable.
Feed Opening in (mm) |
Power Requirement in (HP) |
Recommended Rotor Speed in (RPM) |
Maximum Feed in (mm) |
Crushing Capacity in (TPH) |
750 mm x (dia) 940 mm |
75 - 100 |
1200 |
-40 |
30 - 50 |
