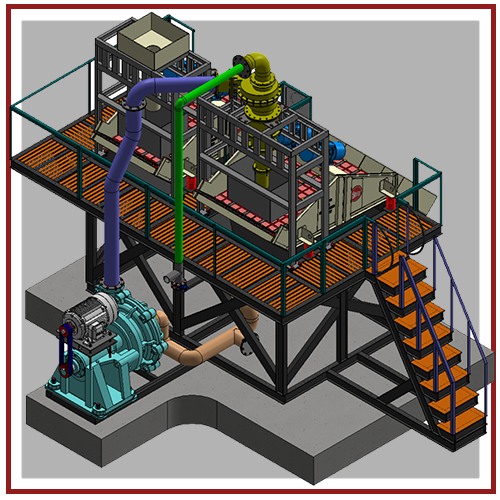

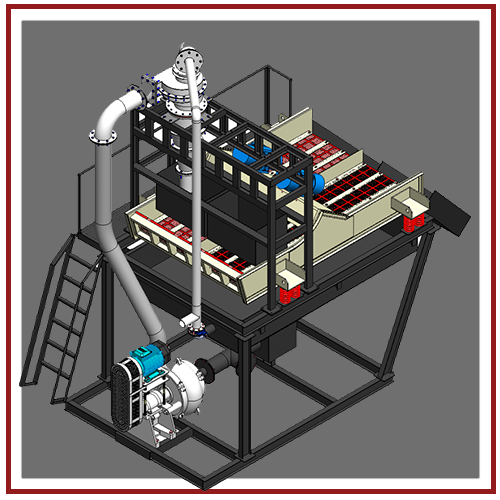

Nandhi Cyclone

WORKING PRINCIPLE

The Operating principle of the hydro cyclone is that of a conical vortex-generating chamber. The liquid slurry enters at the top of the conical wall of the hydro cyclone through a vortexfinder which creates tangential flow and therefore a strong vortex in the hydro cyclone. Cyclone 250 Cyclone 300 40 5HP x 4Dewatering Screen Size 6 x 4 8 x 6 10 x 6 12 x 6 12 x 6 8 x 5 300 350 400 S400 500 Cyclone Size 500 8 x 4 (Feet) Nandhi cyclone is central sedimentation when two phases mixed liquid is fed into hydro cyclone by certain pressure liquid and produces strong rotational movement. Due to the different densityof particles, the centrifugal force, the working modes sand removing, sand washing, ultra fine classification.

APPLICATION

1. Serilization, large_scale,specification cut size:4 microns-400 microns.
2. Various wear_resisting materials: High alumina ceramic, polyurethane, ceramic composite

3. Model	Dewatering Screen Size (Feet)	Pump Capacity (HP)	Cyclone Size	Vibro Motor (HP)
   Cyclone 70	6 x 4	15	300	2HP x 2
   Cyclone 100	8 x 6	15	350	5HP x 2
   Cyclone 150	10 x 6	15	400 S	5HP x 2
   Cyclone 200	12 x 6	20	400	5HP x 2
   Cyclone 250	12 x 6	40	500	5HP x 2
   Cyclone 300	8 x 4 8 x 5	40	500	5HP x 4
