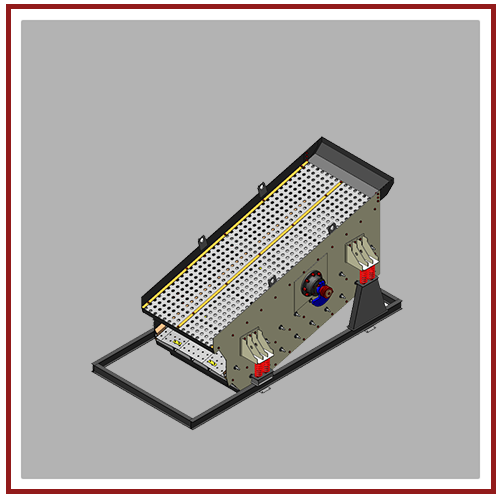

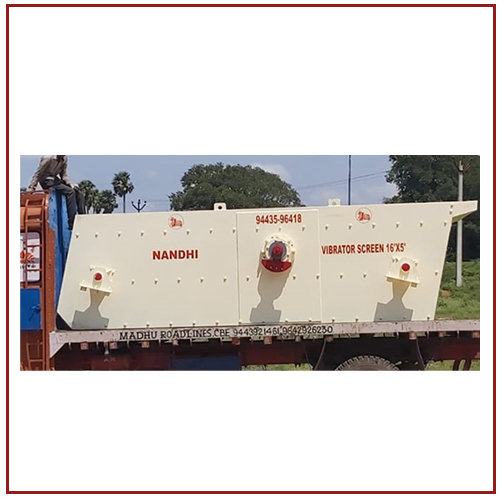

The vibrating screen body is put it on to an inclined frame. The frame is mounted onthe springs. The vibration is generated from an unbalanced flywheel and counter weight, a very erratic motion is developed when this flywheel is rotated.
FEATURES AND BENEFITS
Screen Size feet (mm) |
Screen Size Imperial |
Number of Decks |
Screen Area/ Deck sq.ft |
Approx weight kg |
Motor required (HP) |
16 x 5 5000 x 1530 |
4 3 2 |
80 |
5000 4500 4000 |
(20) (15) (10) |
|
18 x 5 5500 x 1530 |
4 3 |
90 |
6500 5500 |
(20) (15) |
|
20 x 5 6100 x 1500 |
4 3 |
100 |
7000 6000 |
(20) (15) |
